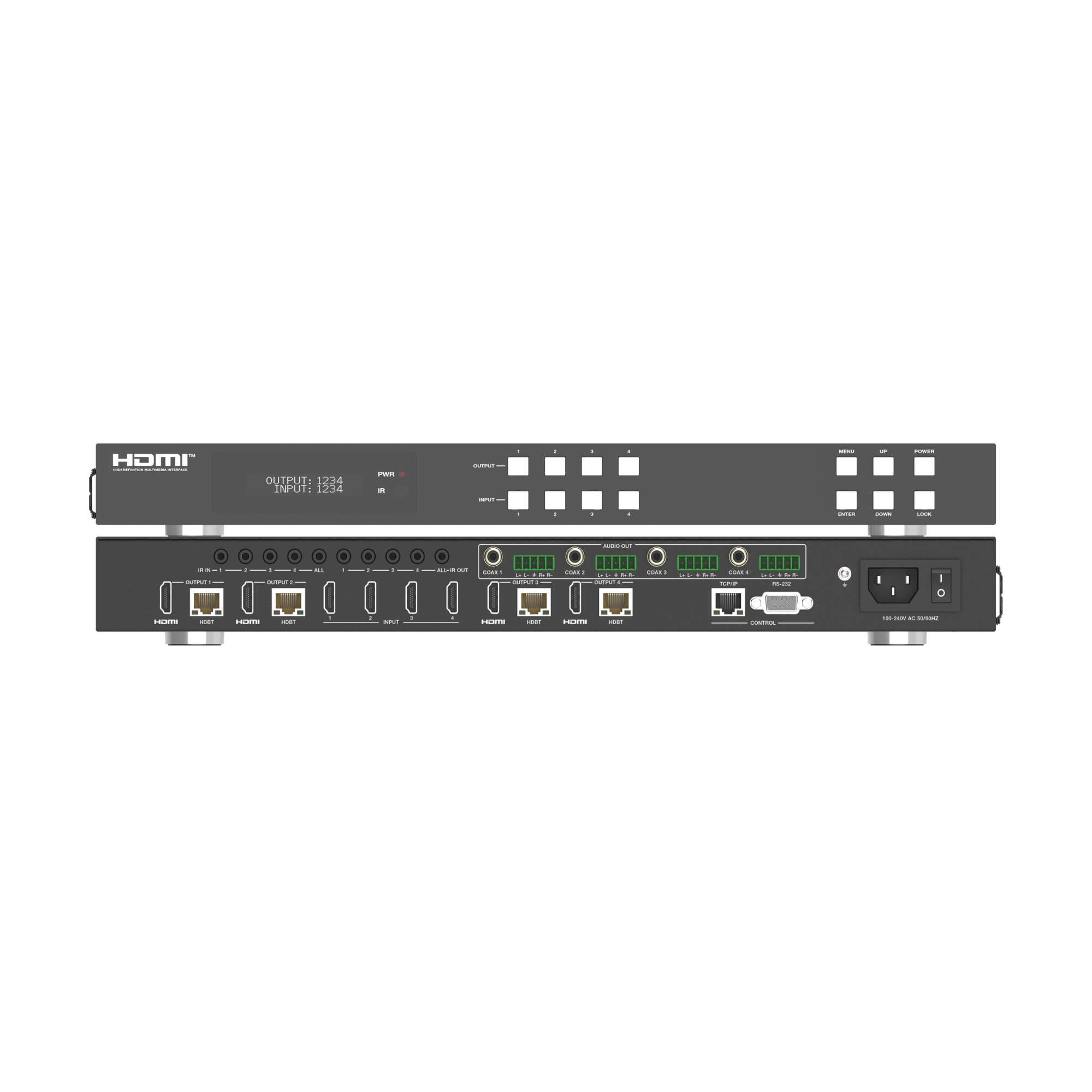

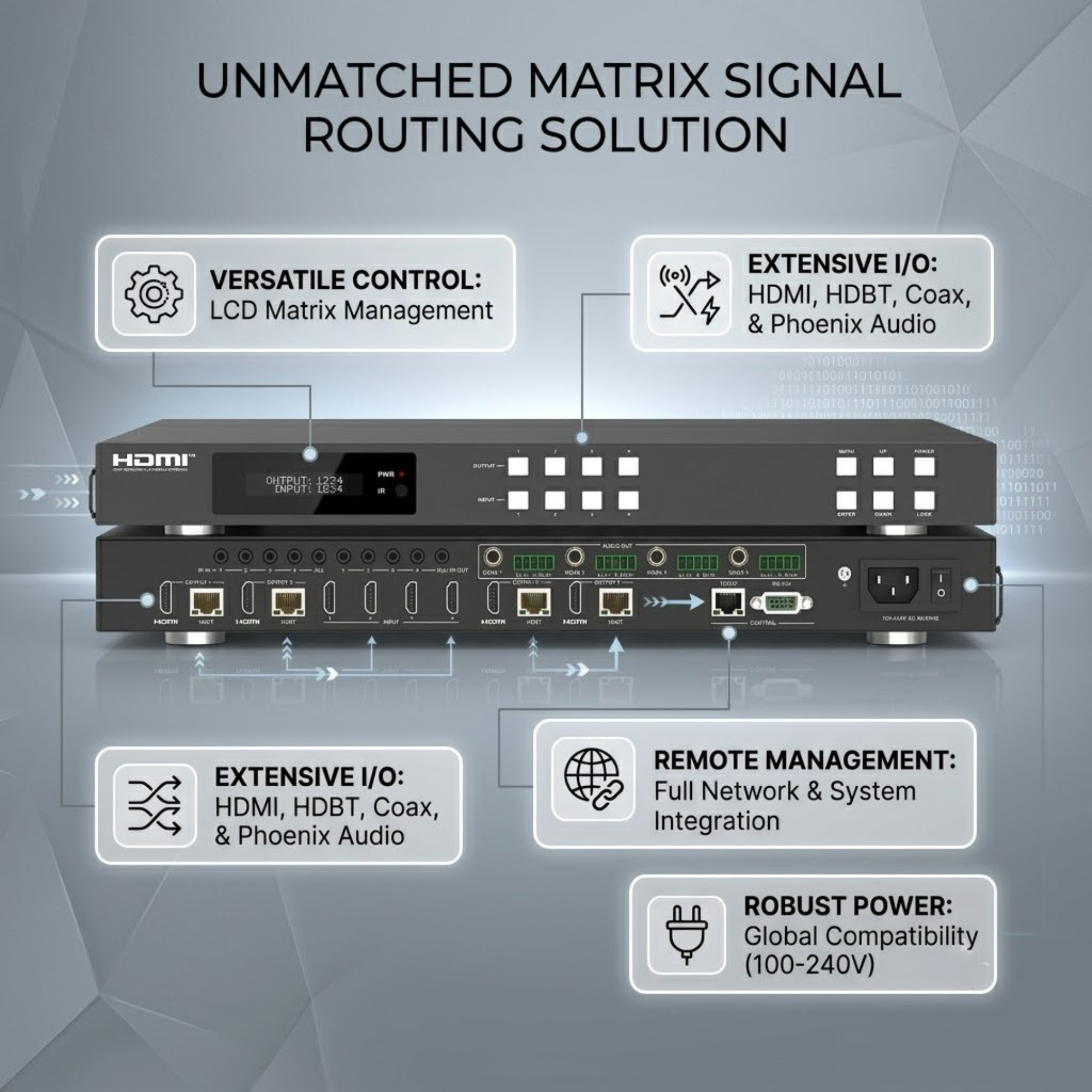

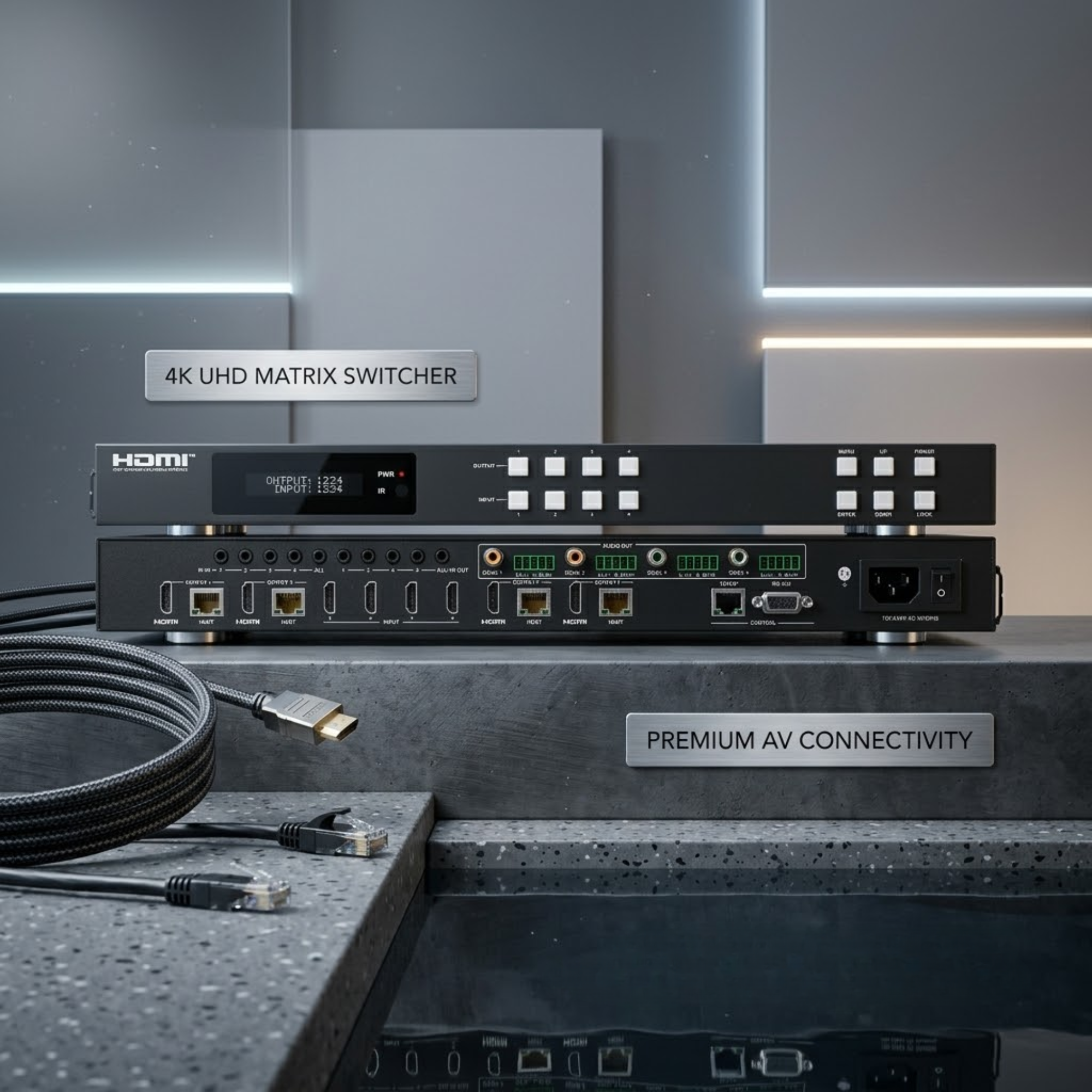

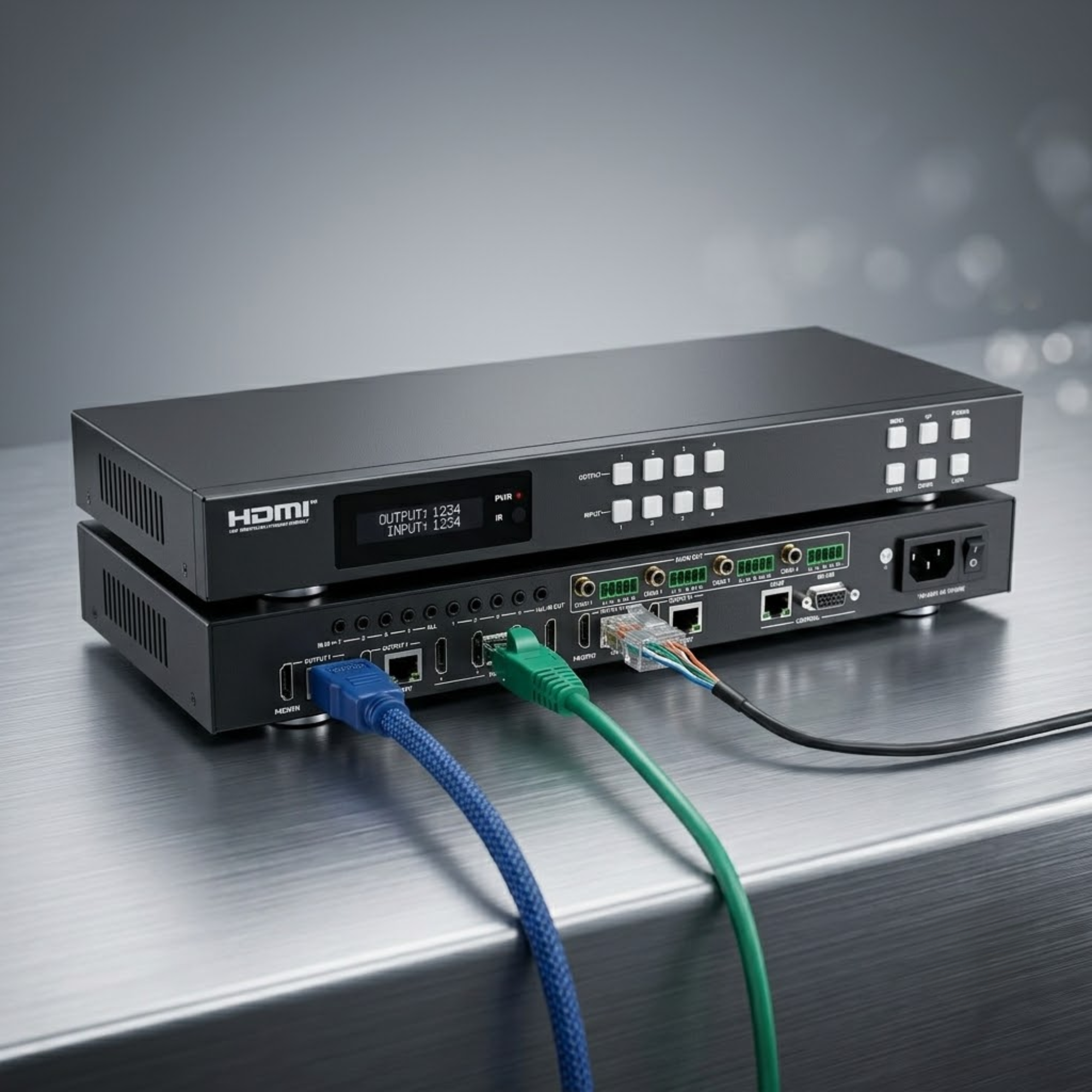

? HDCP 2.2 and HDCP 1.x compliant ? Video resolution up to 4K2K@60Hz (YUV 4:4:4) on all HDMI™ & HDBaseT ports ? 4x HDMI™ inputs, 4x HDMI™ & HDBaseT mirrored outputs ? HDMI™ ports transmit 18Gbps lossless uncompressed video bandwidth ? Support 18Gbps lossless compressed HDBaseT signal transmission ? Support 4K->1080P Down Scaler for each output port ? HDR, HDR10, HDR10+, Dolby Vision, HLG are supported ? HDBaseT output can extend video transmission distance up to 492ft/150m for 1080P or 394ft/120m for 4K2K via a single CAT 5e/6/7 cable ? HDMI™ audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio) ? Support IR matrix ? Audio de-embedded is supported via analog and coax ports ? Advanced EDID management and CEC control are supported ? 24V PoC on all HDBaseT ports ? 1U rack mounted design with front panel OLED display ? Control via front panel buttons, IR remote, RS-232, LAN and Web GUI
